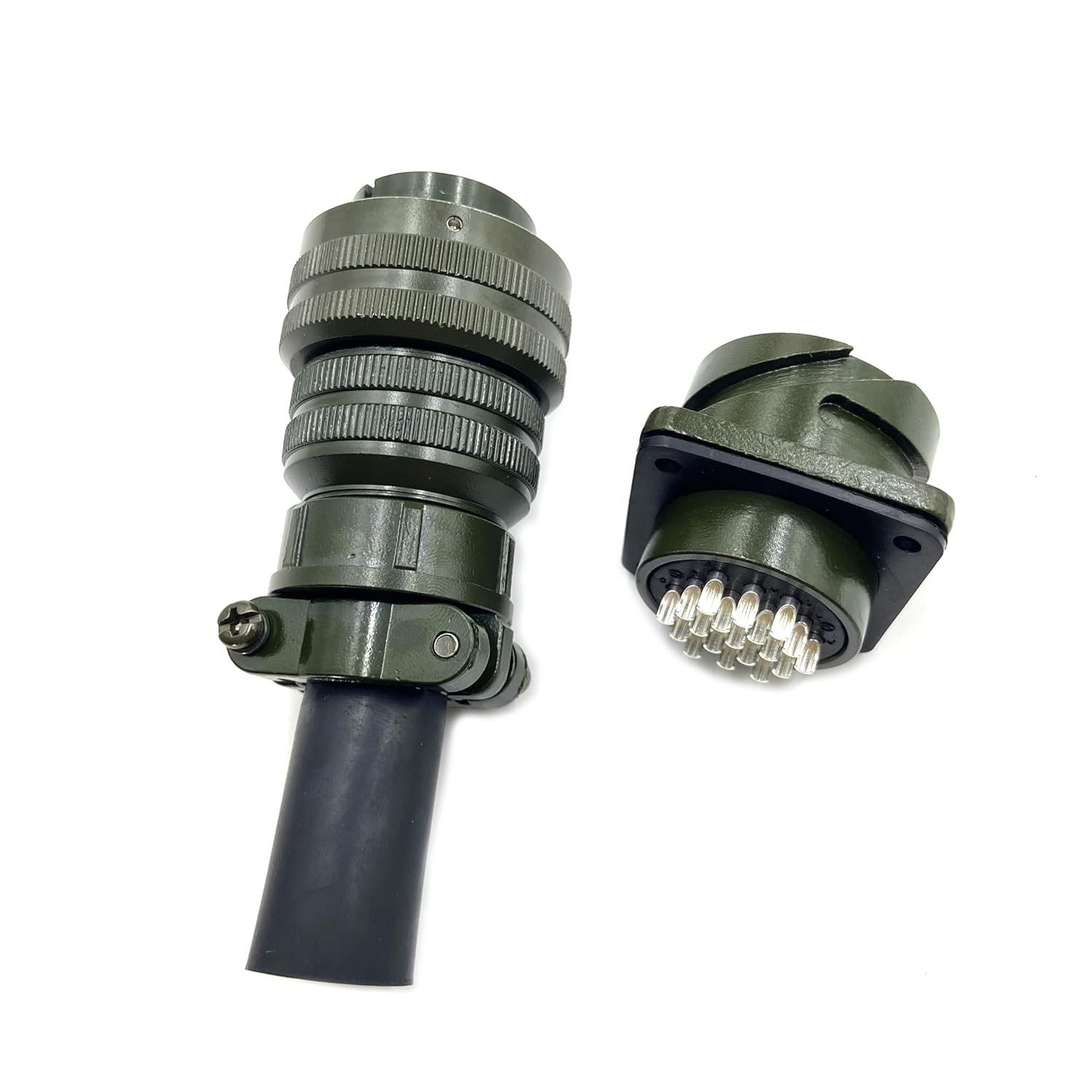

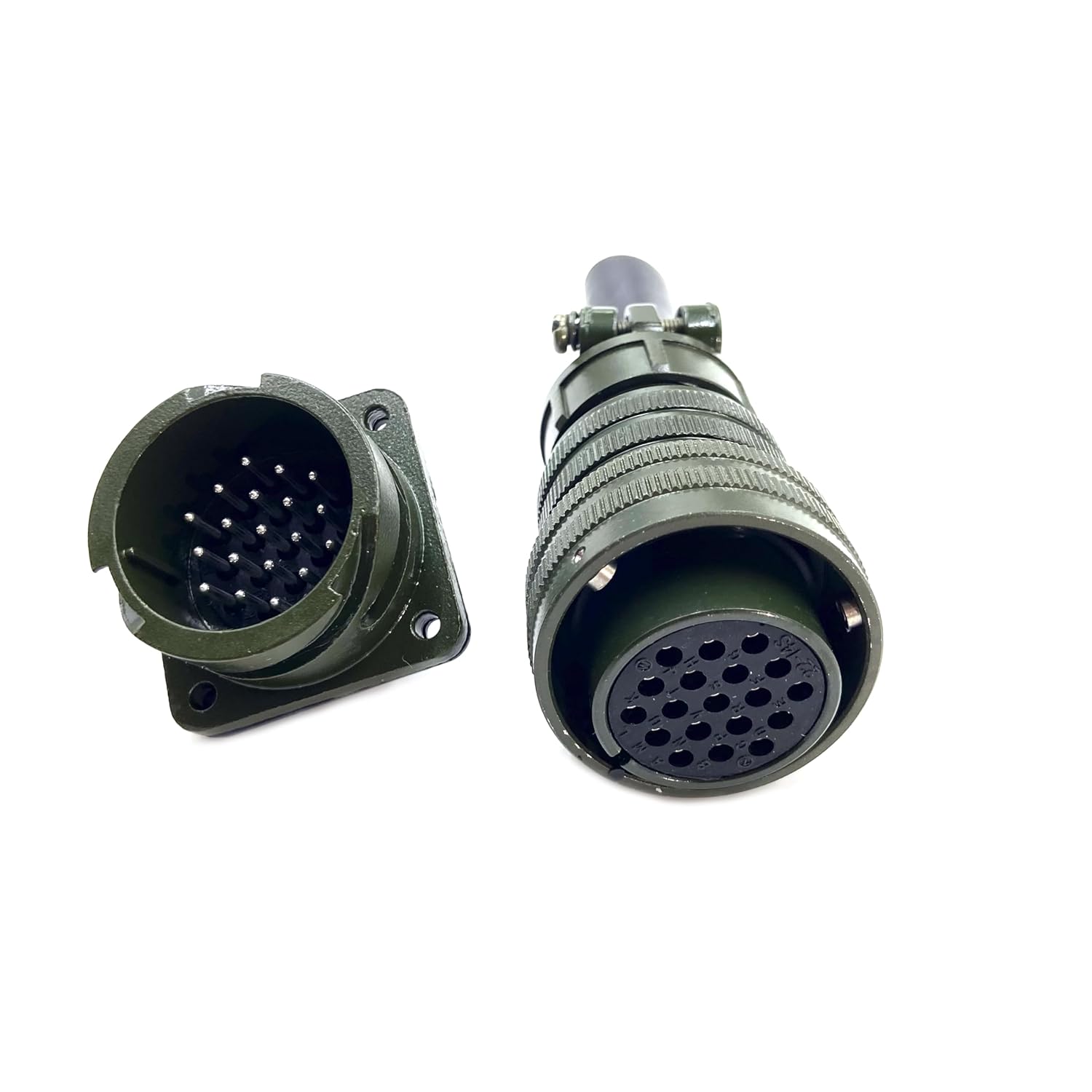

MS3106A22-14 Female Plug and MS3102A22-14 Male Socket 19Pin MIL-DTL-5015 Standard Connectors Bayonet Series for Electronic Application Interconnection System

Specification Body Material:Aluminum Alloy Installation method:Panel Mount Terminal type:Solder Type Gender:Male and Female (one Pair) Direction:Straight Coating:Olive Drab Cadmium Number of Positions:19pin Docking method:Bayonet

• MS3106A22-14 Plug and MS3102A22-14 Socket Combination Set,Female and Male,19 Pin,Straight,Bayonet Lock Connector Series
• VG95234 reverse bayonet-lock connector series is based on the MIL-DTL-5015 standard, and shares many of the same insert arrangements, shell dimensions, supported contacts, and electrical performance ratings as MIL-DTL-5015.
• Medium to heavy weight cylindrical; Durable,field-proven design;
• Environmental resistant;Resilient inserts; Bayonet connect;
• The VG95234 bayonet coupling mechanism provides easy mating and positive locking resistance to vibration, shock, and other connector decoupling forces in general duty and environmental interconnect systems such as railway cars, locomotives, industrial controls, factory robotics, mil vehicles, and other general electronic applications.
