3Pack Nema 23 Stepper Motor 1.8° 2 Phase High Torque 1.3Nm(184.1oz·in) Bipolar 57x55mm 4.2A 0.5Ω 4-Lead Shaft 21mm φ6.35mm 57 Stepper Motor Cable 1M for CNC Mill Lathe 3D Printer DIY Robot
4.2 (91 items)
Limited Time SaleUntil the end
19
57
27
$36.48 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $60.80
Product details
| Management number | 221093065 | Release Date | 2026/05/03 | List Price | $24.32 | Model Number | 221093065 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

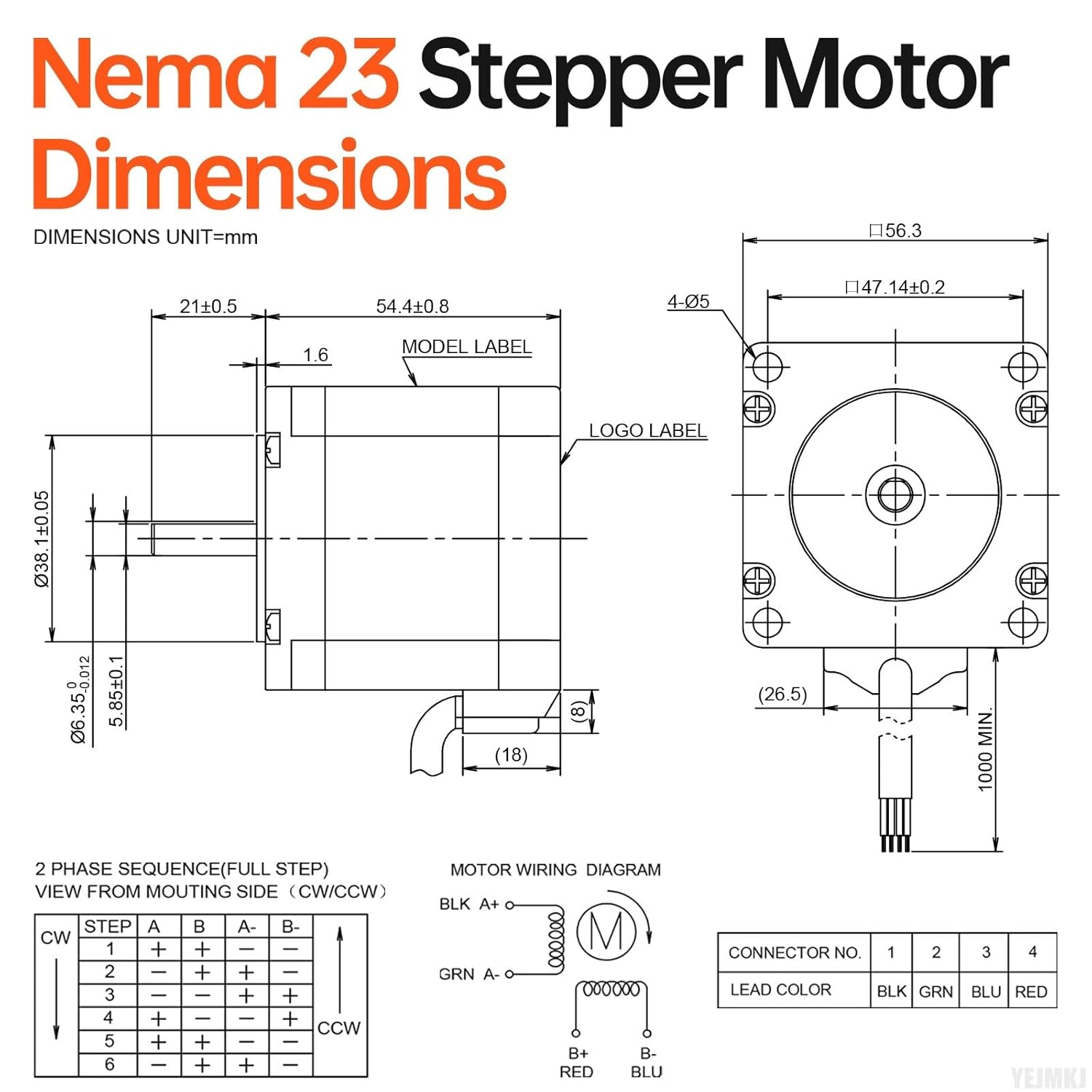

- Dimensional details: The physical dimensions of a Nema 23 Stepper Motor are summarized below. Body size 57x57x54.4mm(2.25x2.25x2.15in), Shaft length 21±0.5mm, Shaft diameter φ6.35mm, D-cut length 21mm, Installation hole distance 47mm, with Cable 1m, 4-Lead Black (A+) Green (A-) Red (B+) Blue (B-), Weight 717g.
- Parameters: Nema 23 Stepper Motor 2 Phase, Step angle 1.8 Degree (200 steps/rev), Holding torque 1.3Nm (184.1oz·in), Resistance 0.5Ω, Rated current 4.2A, Inductance 1.2mH±20%, Rotor inertia approx 300g.cm².
- Safety: This Nema23 Step Motor operates safely and reliably. Here are its key safety parameters: Dielectric strength 500V A.C 1 MINUTE; Insulation class(UL) B (130℃) [266°F]; Insulation resistance 100MΩ MIN; Operation ambient humidity 15%RH～95%RH; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Temperature rise 80K MAX.
- Unlock Machine Capability: Leveraging reinforced steel cores and meticulously wound coils, this Nema 23 Step Motor offers up to 20% increased holding torque versus standard units. Benefit from a quieter operational profile and minimal environmental disturbance.
- Key Information: Faster speeds lead to lower torque, so the recommended range is 0–600 RPM. Lower current reduces torque and temperature rise, while lower voltage decreases torque (recommended range: 24–36V DC). Used in 3D printers, DIY robots, CNC machines, and other systems, the Nema 23 Stepper Motor's compact size and high torque make it suitable for tough applications.
